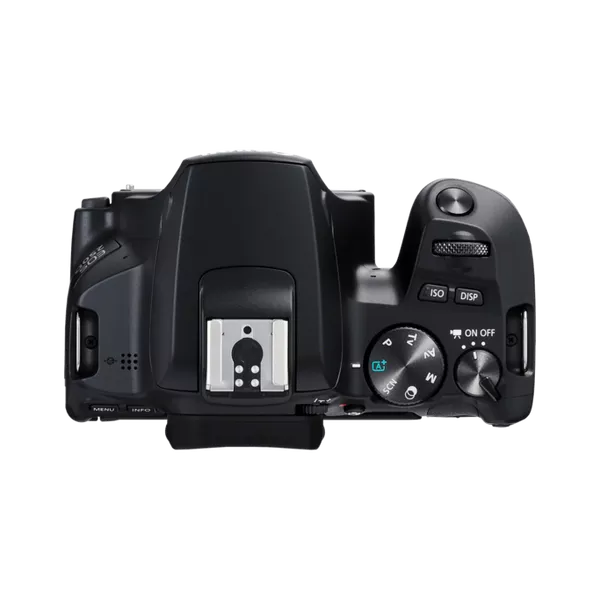

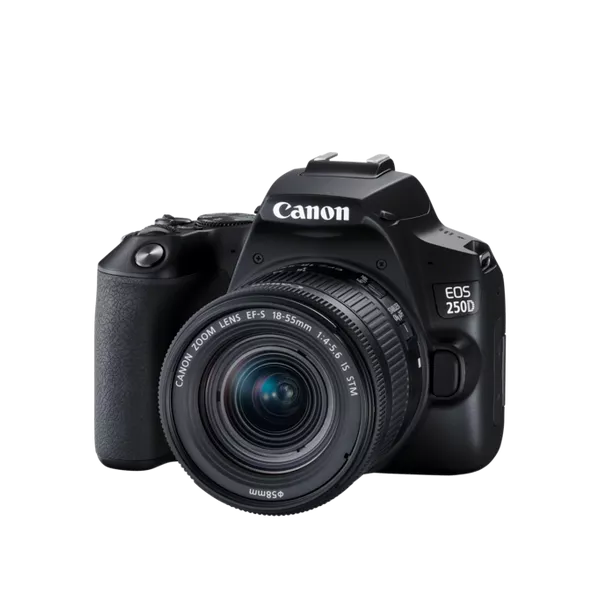

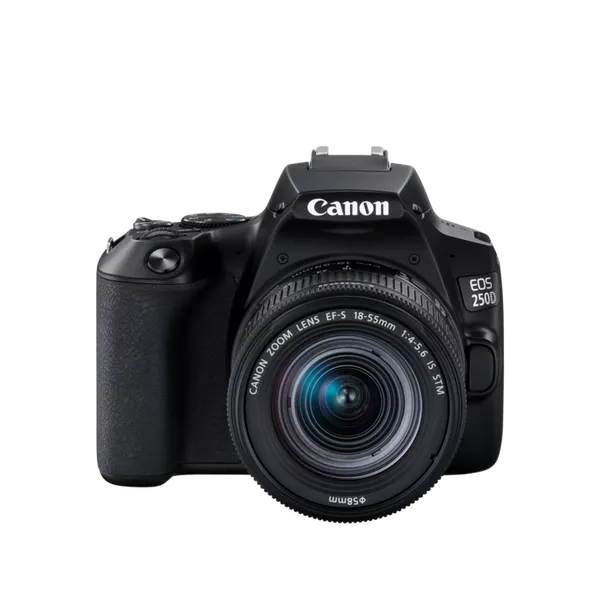

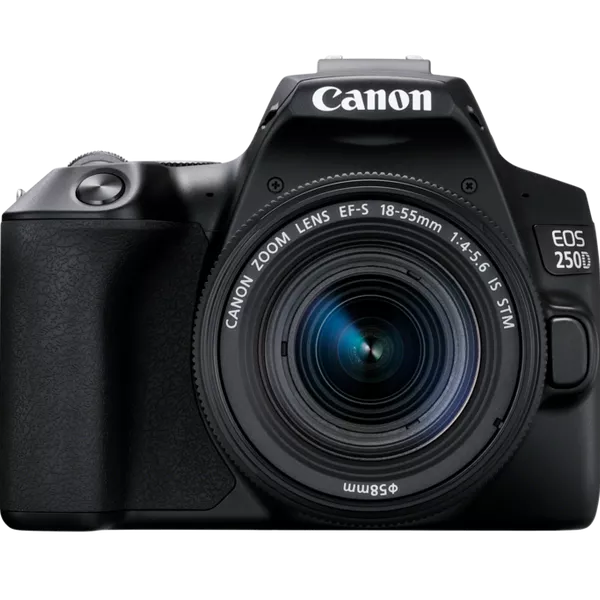

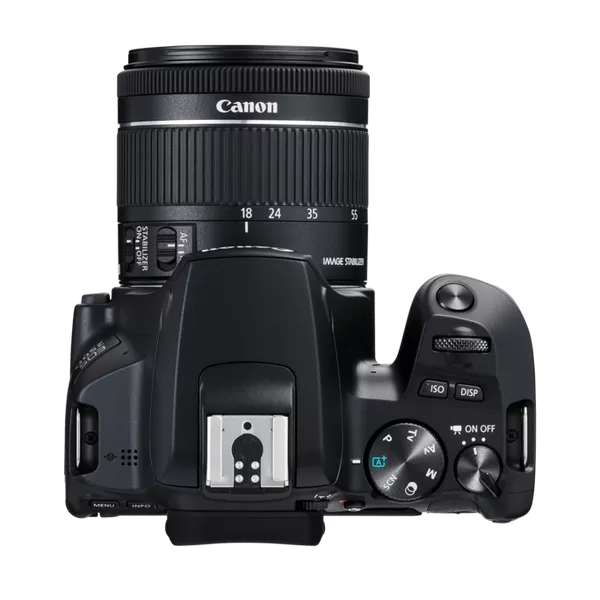

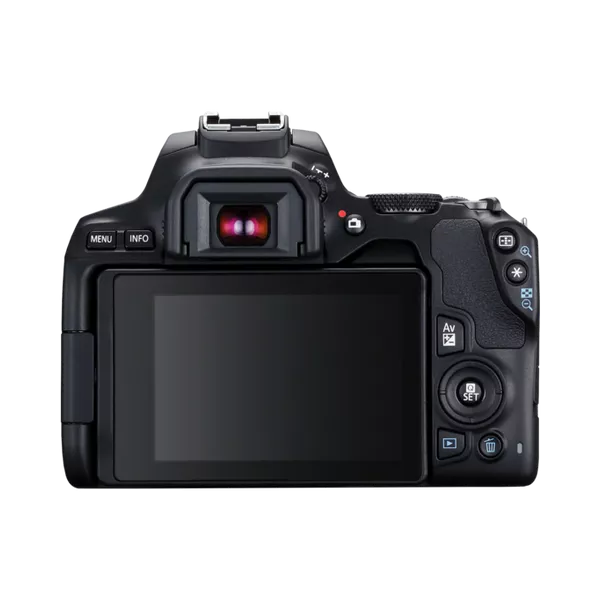

Canon 250D 18-55mm STM 3454C002AA

Specifications in detail

Image Sensor

• Type
  22.3 mm x 14.9 mm CMOS
• Effective Pixels
  Approx. 24.10 megapixels
• Total Pixels
  Approx. 25.80 megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Colour Filter Type
  Primary Colour

Image Processor

• Type
  DIGIC 8

• Lens Mount
  EF and EF-S mount
• Focal length
  Approx. 1.6x the focal length of the lens
• Image Stabilisation
  Optical Image Stabilizer on compatible lenses

• Type
  Via optical viewfinder: TTL secondary image-forming phase-difference detection system with AF-dedicated sensor.
  Via LiveView on LCD screen: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor¹
• AF System / Points
  Via optical viewfinder: 9-point Center AF point is AF cross-type supporting f/5.6. Center AF point is vertical line-sensitive supporting f/2.8. Other AF points are vertical line-sensitive or horizontal line-sensitive AF supporting f/5.6. ²
  Via LiveView on LCD screen: Maximum 143 AF points via camera automatic selection ³ Freely position 1 AF point/1 AF Zone max 3,975 points via manual selection ¹
• AF working range
  Via optical viewfinder: EV -0.5 – 18 (center AF point)⁴ EV 0.5 – 18 (other AF points) ⁴
  Via LiveView on LCD screen: EV -4 – 18 (f/1.2 at 23 °C & ISO 100) with One-Shot AF
• AF Modes
  AI Focus, One Shot, AI Servo (AI Servo II algorithm)
• AF Point Selection
  Via optical viewfinder:

  Automatic selection: 9 point AF
  Manual selection: Single point AF
• Selected AF point display
  Indicated by a transmissive LCD in viewfinder and Quick Control screen
• AF Lock
  Locked when shutter button is pressed half way in One-Shot AF mode or AF-ON Button is pressed.
• AF Assist Beam
  Emitted by optional dedicated Speedlite
• Manual Focus
  Selected on lens

• Metering modes
  Via optical viewfinder:

  63-zone dual-layer metering sensor with Evaluative, partial, spot (centre only) and centre-weighted average available

  Via LiveView on LCD screen:

  (1) Evaluative metering (384 zones)
  (2) Partial metering (approx. 5.5 % of LCD screen)
  (3) Spot metering (approx. 3.7 % of LCD screen)
  (4) Center-weighted average metering

• Metering Range
  Via optical viewfinder: EV 1 – 20 (at 23 °C with 50 mm f/1.4 lens ISO 100) Via LiveView on LCD screen: EV -2 – 20 (at 23 °C, ISO 100, evaluative metering)
• AE Lock
  Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
  Manual: By AE Lock Button in creative zone modes.
• Exposure Compensation
  +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
• AEB
  3 shots +/-2 EV 1/3 or 1/2 stop increments
• ISO Sensitivity
  Auto (100-25600), 100-25600 (in whole stop increments)
  ISO can be expanded to H: 51200
  During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25600. 4K Movie Max. 6400

Shutter

• Type
  Electronically-controlled focal-plane shutter
• Speed
  30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

• Type
  Automatic white balance with the imaging sensor
• Settings
  AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White, Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber bias +/-9 levels. 2. Magenta/ Green bias +/-9 levels
• Custom White Balance
  Yes, 1 setting can be registered
• WB Bracketing
  +/-3 levels in single level increments
  3 bracketed images per shutter release.
  Selectable Blue/Amber bias or Magenta/Green bias.

• Type
  Pentamirror
• Coverage (Vertical/Horizontal)
  Approx. 95 %
• Magnification
  Approx. 0.87x ⁵
• Dioptre Correction
  -3 to +1 m-1 (dioptre)
• Focusing Screen
  Fixed (Translucent LCD screen for information overlay)
• Mirror
  Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600 mm f/4 IS USM or shorter)
• Viewfinder Information
  AF information: AF points, focus confirmation, AF area selection mode. Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation.
  Image information: Card information, maximum burst (1 digit display), Highlight tone priority (D+). Composition information: Grid, Aspect Ratio. Other information: Warning icon.
• Depth of field preview
  Yes, with Depth of Field preview assigned to a button via Custom Function.
• Eyepiece shutter
  On strap

• Type
  Vari-angle touchscreen 7.7 cm (3.0") 3:2 Clear View II TFT, approx. 1040 K sRGB dots
• Coverage
  Approx. 100%
• Viewing Angle (horizontally/vertically)
  Approx. 170°
• Brightness Adjustment
  Adjustable to one of seven levels
• Display Options
  (1) Quick Control Screen
  (2) Camera settings

Flash

• Built-in Flash GN (ISO 100, meters)
  9.8
• Built-in Flash Coverage
  up to 18 mm focal length (35 mm equivalent: approx. 29mm)
• Built-in Flash recycle time
  Approx. 3 seconds
• Modes
  Auto, Manual flash
• X-sync
  X-Contact is not equipped. 1/200 sec
• Flash Exposure Compensation
  +/- 2 EV in 1/2 or 1/3 increments
• Flash Exposure Bracketing
  Yes, with compatible External Flash
• Flash Exposure Lock
  Yes
• Second Curtain Synchronisation
  Yes
• HotShoe / PC terminal
  Yes/ No
• External Flash Compatibility
  E-TTL II with EX series Speedlites, wireless optical multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Scene Intelligent Auto (Stills and Movie), Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Group Photo, Night Portrait, Smooth Skin, Group Photo, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie)
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing
  Highlight Tone Priority (3 settings) Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Multi Shot Noise Reduction Auto Correction of Lens Peripheral illumination, Chromatic aberration correction, Distortion correction, Diffraction correction Digital Lens Optimizer Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Water painting effect, Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed)

  Multi-exposure Resize, Crop (JPEG only)
• Drive modes
  Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote)
• Continuous Shooting
  Max. Approx. 5 fps.

Live View Mode

• Coverage
  Approx. 100% (horizontally and vertically)
• Frame Rate
  29.97 fps
• Focusing
  Manual Focus (Magnify the image 5x or 10x at any point on screen)
  Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single)
  One-shot AF and Servo AF selectable for Stills and Movie
• Metering
  Real-time evaluative metering with image sensor.
  Evaluative metering, partial metering, spot metering, center-weighted average metering.
• Display Options
  Grid overlay (x3), Histogram,

File Type

• Still Image Type
  JPEG: Fine, Normal (Exif 2.31 [Exif Print] compliant) / Design rule for Camera File system (2.0)

  RAW: 14bit, Canon original RAW 3rd edition Digital Print Order Format [DPOF] Version 1.1 compliant
• RAW+JPEG simultaneous recording
  RAW, RAW + JPEG (any combination) possible.
• Image Size
  JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400x1600,
  JPEG 4:3: (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 2112x1600,
  JPEG 16:9: (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344,
  JPEG 1:1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1600x1600,
  RAW: (RAW) 6000x4000
• Movie Type
  MP4 (Video: H.264 inter frame, Audio: AAC, recording level can be manually adjusted by user) MOV (Video: H.264 All-I Full HD, no sound) - time-lapse movie only
• Movie Size
  3840 x 2160 (23.98, 25 fps) inter-frame
  1920 x 1080 (59.94, 50 fps) inter-frame
  1920 x 1080 (29.97, 25 fps) inter-frame
  1920 x 1080 (29.97, 25) lite inter-frame
  1280 x 720 (59.94, 50 fps) inter-frame
• Movie Length
  Max duration 29min 59sec
• Folders
  New folders can be manually created and selected
• File Numbering
  (1) Consecutive numbering
  (2) Auto reset
  (3) Manual reset

• Custom Functions
  11 Custom Functions
• Metadata Tag
  User copyright information (can be set in camera)
  Image rating (0-5 stars)
• Intelligent Orientation Sensor
  Yes
• Playback zoom
  1.5x - 10x
• Display Formats
  (1) Single image with information (2 levels)
  (2) Single image
  (3) 4-image index
  (4) 9-image index
  (5) 36-image index
  (6) 100-image index
  (7) Jump Display
• Slide Show
  Choose images with Image Search
  Playback time: 1/2/3/5/10/20 seconds
  Repeat: On/Off
  Background music: On/Off
  Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase/Protection
  Erase: Select image, select range, all images in folder, all images on a card, all found images (during image search)
  Protection: Single image, select range, all images in folder, all images on a card, all found images (during image search)
• Menu Categories
  Menu interface adjustable by the user between standard and guided

  (1) Shooting menu
  (2) Playback menu
  (3) Setup menu
  (4) Display Options menu
  (5) My Menu
• Menu Languages
  29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Japanese, Vietnamese, Hindi, Malay, Indonesian
• Firmware Update
  Update possible by the user.
• Body Materials
  Chassis: Aluminium alloy and polycarbonate resin with glass fibre
  Exterior: Polycarbonate resin with glass fibre and special conductive fibre

Interface

• Computer
  Hi-Speed USB
• Wi-Fi
  Wi-Fi (2.4GHz) Channels: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Wi-Fi Security
  Camera Access Point: WPA2-PSK with AES encryption or open
  Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open
• Bluetooth
  BLE (Bluetooth Low Energy Technology)
• Other
  Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5 mm Stereo mini jack)

Direct Print

• Canon Printers
  Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
• PictBridge
  Yes

• Type
  SD, SDHC, SDXC (UHS Speed Class 1 compatible)

• PC & Macintosh
  See individual software

Software

• Image Processing
  Digital Photo Professional 4 (RAW Image Processing)
• Other
  EOS Utility
  EOS Lens Registration Tool
  EOS Web Service Registration Tool
  EOS Sample Music
  Picture Style Editor

  Camera Connect app available on iOS and Android devices

Power Source

• Batteries
  1 x Rechargeable Li-ion Battery LP-E17
• Battery life
  Viewfinder: Approx. 1070 (at 23°C, AE 50%, FE 50%) (5)
  Viewfinder: Approx. 1020 (at 0°C, AE 50%, FE 50%)
  LiveView: Approx. 320 (at 23°C, AE 50%, FE 50%)
  LiveView: Approx. 300 (at 0°C, AE 50%, FE 50%)
• Battery Indicator
  4 levels
• Power saving
  Power turns off after 10/30 (10 sec viewfinder/30 sec live view, functions, image playback etc) sec, 30 sec, 1, 2, 4, 8, or 15 mins.
• Power Supply & Battery Chargers
  Battery charger LC-E17E

Accessories

• Viewfinder
  Eyecup Ef
  Rubber Frame Ef
  E-series Dioptric Adjustment Lenses
  Eyepiece Extender EP-EX15II
  Magnifier MG-Ef
  Angle Finder C
• Lenses
  All EF and EF-S lenses
• Flash
  Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) ⁴
• Remote Controller / Switch
  Remote Switch RS-60E3, Remote Controller BR-E1, Timer Remote Controller TC-80N3 via Remote Controller Adapter RA-E3
• Other
  Hand Strap E2, GPS Receiver GP-E2, Directional Stereo Microphone DM-E1, Protecting Cloth PC-E1, PC-E2, HDMI Cable HTC-100, Canon Interface Cable IFC-600PCU
